75x75 VESA Mount for compact Displays - free 3D Printing File

75x75 VESA to 16mm Baby (TV) Pin Adapter / Mount by SCHLEPP Camera Carts

Attach compact displays such as the Uperfect 1.200 nits 16" 4K Monitor, Asus Proart PA16USV or similar displays with 75x75 VESA Mounts to any stand or (magic) arm with a (male) 16mm Baby TV Pin.

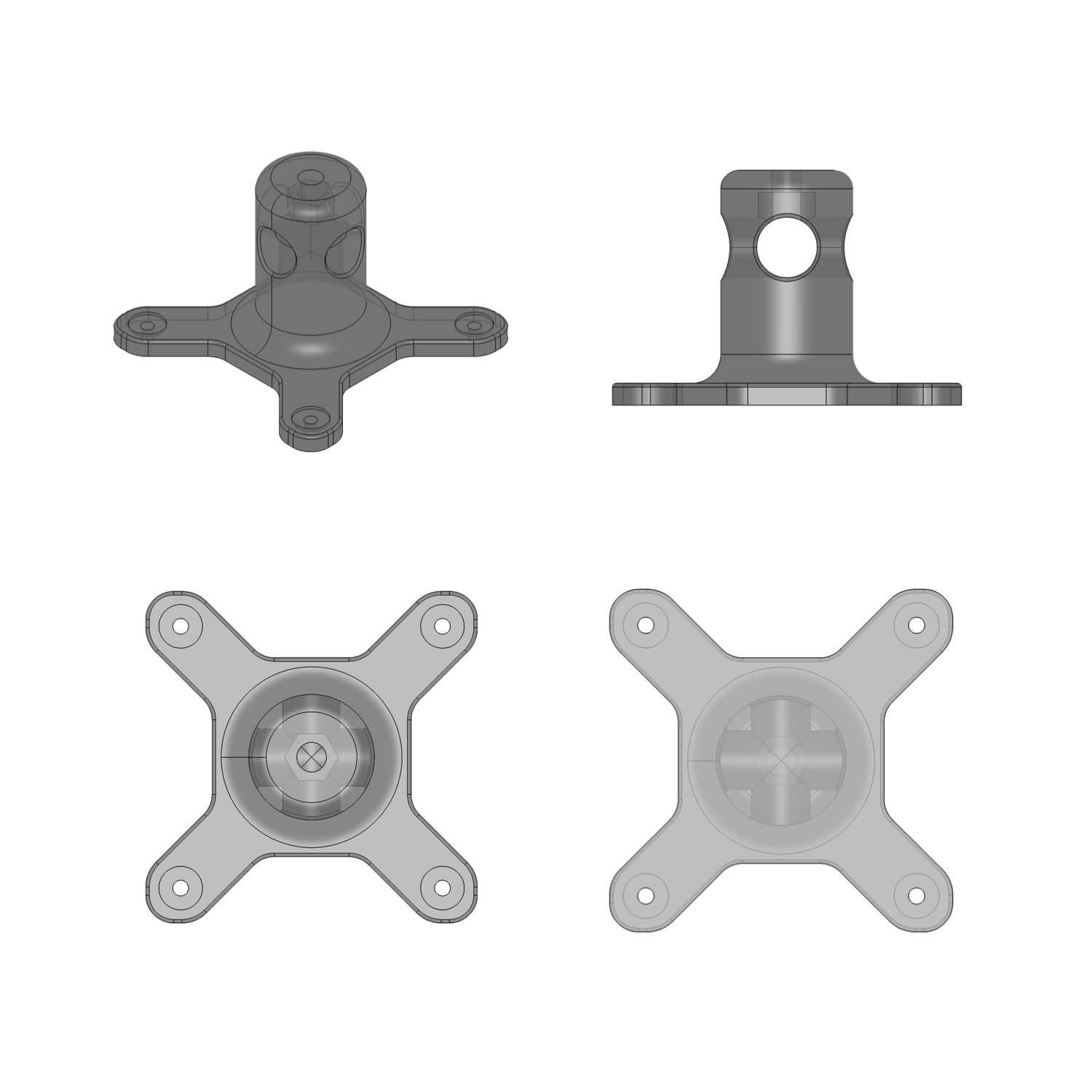

1. printable parts (free for download)

You can get the STL-file here

DOWNLOAD for free on printables.com

SCHLEPP Camera Carts on printables.com

2. Required Fasteners:

• 1x M8 x 16mm Star Knob (please contact SCHLEPP Camera Carts if you can't find one - same Star Knobs as used for the Middle Shelf on SCHLEPP ONE and SCHLEPP ONE-S. You will most probably find those on Amazon or in hardware stores).

• 1x M8 Nut

For attaching the display (tested with Uperfect 16" 4K 1.200 nits Monitor):

• 4x M4 x 10mm Screw (please check depth of the threads on your display)
• 4x M4 Washers

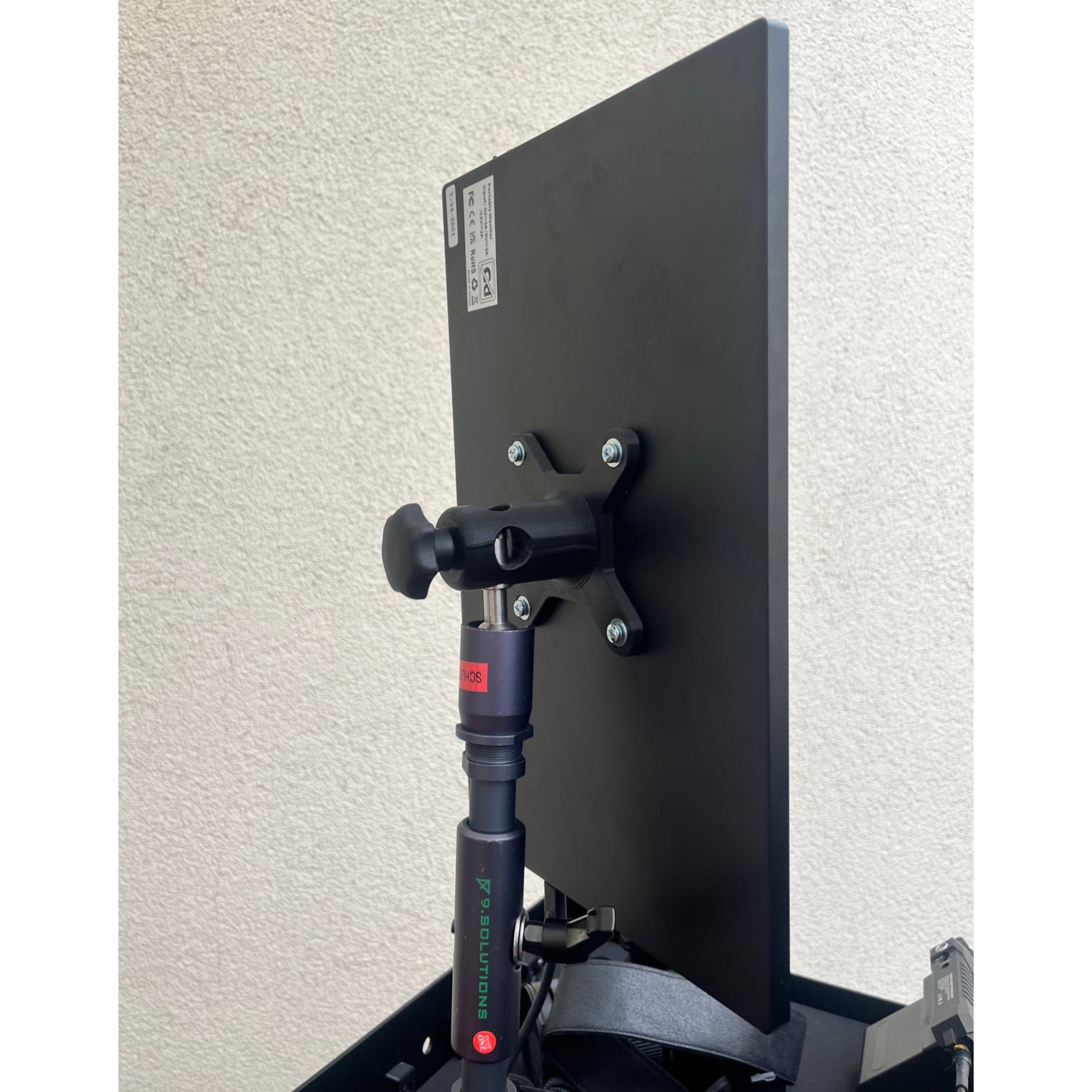

The Display can be switched from landscape to portrait orientation by releasing and re-attaching the adapter by 90°.

Max. recommended weight (Display): 1.2 KG

After printing, insert the M8 nut into the Hex pocket inside the top end of the adapter / mount. Apply the M8x16mm Star Knob. Add the display and apply the 4x M4 Washers and 4x M4x10mm Screw.  You can add additional washers, if the M4x10mm Screw is too long. Washers reduce point loads on the printed material.

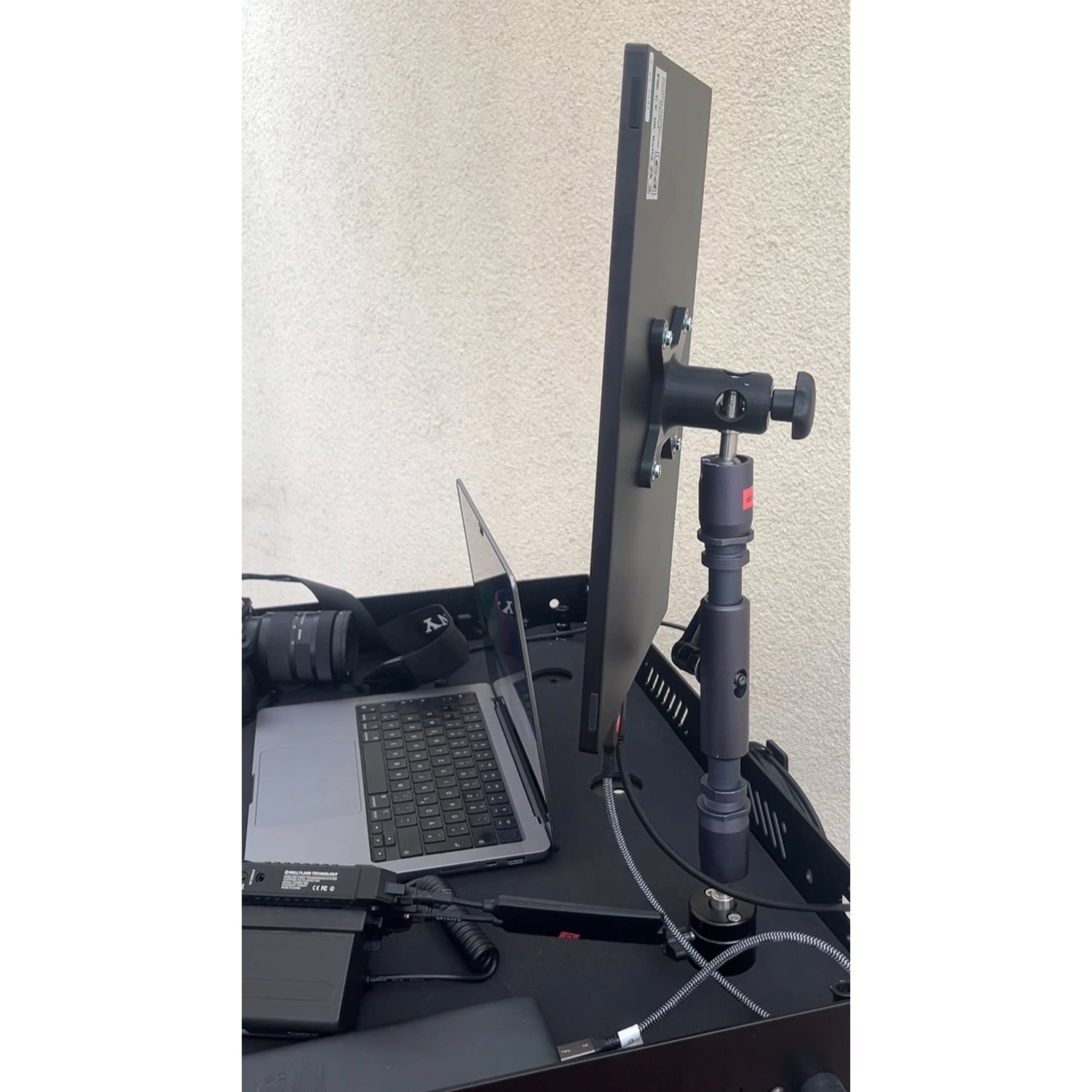

Tighten Star Knob firmly when attaching the Display. The mount is held in place by friction fit alone and does not need to rest on the bottom of the 16mm TV pin.

We recommend using temperature-resistant filaments for printing, as displays can heat up during operation.

⚠  Please check, if your setup is stable in operation before going into productions.

We assume no liability for the operation, for the stability and / or functionality, as the stability of the part is highly dependent on your print quality and how it is used.

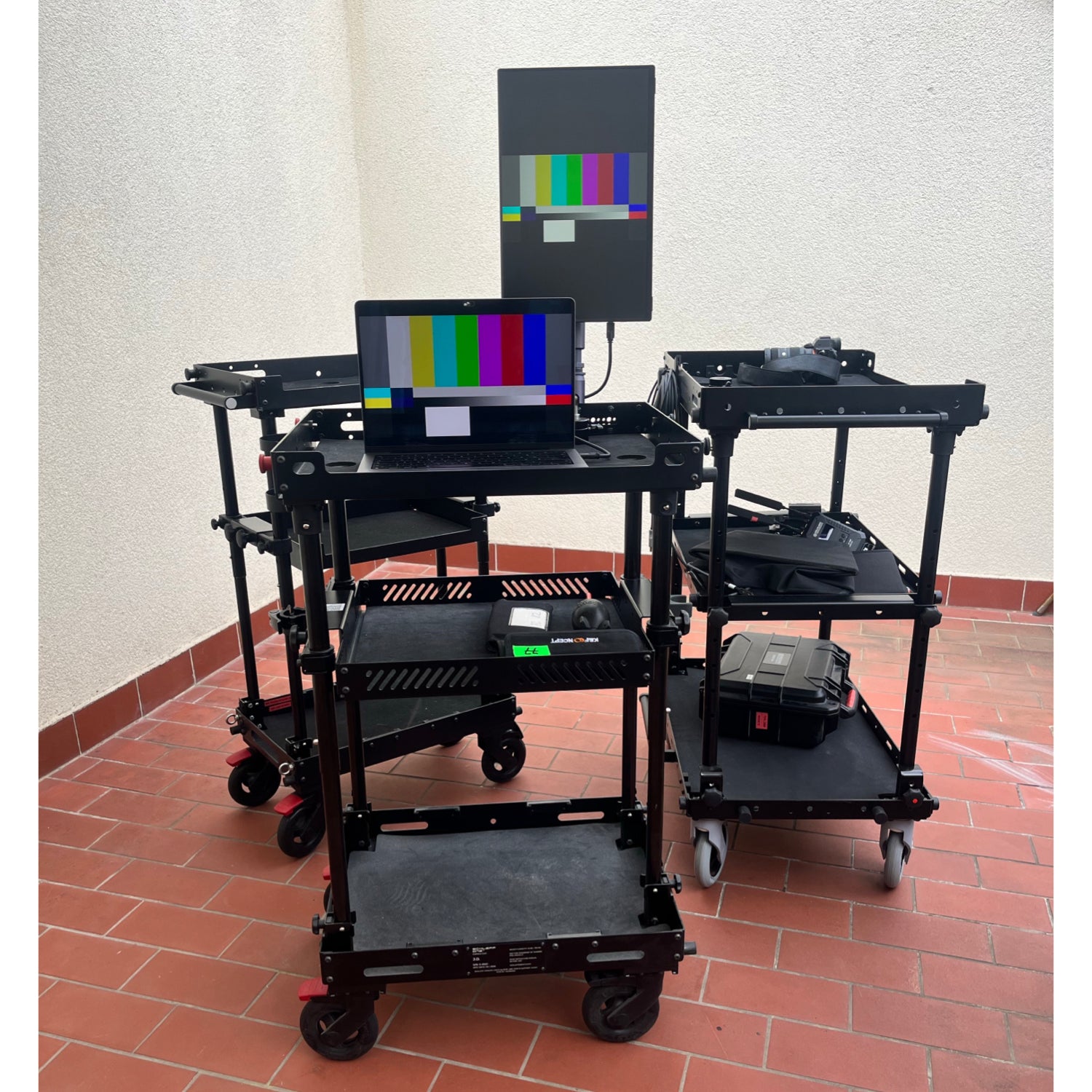

Please note our free guide for the budget-friedly, ultra-bright 1.200 nits Uperfect 16" 4K display - a very decent tool for SCHLEPP ONE / SCHLEPP ONE-S users. SCHLEPP Camera Carts or rent one photo support GmbH is NOT affiliated with the manufacturer.
