Boompole Holder for SCHLEPP ONE Camera Cart

This printable boompole holder for SCHLEPP ONE Camera Cart consists of two key parts and some additional fasteners (3.).

1. printable base part (free for download)

You can get the STL-file for the lower part of the boompole holder here:

DOWNLOAD for free on printables.com

SCHLEPP Camera Carts on printables.com

2. (widely available) QuickFist Original Clamp (not for printing)

We are NOT associated to the manufacturer of QuickFist Clamp. We do NOT provide printable files of QuickFist Clamp. We highly respect intellectual property.

Please see instructions in PDF (download on printables.com) for assembling your SCHLEPP ONE Boompole Holder.

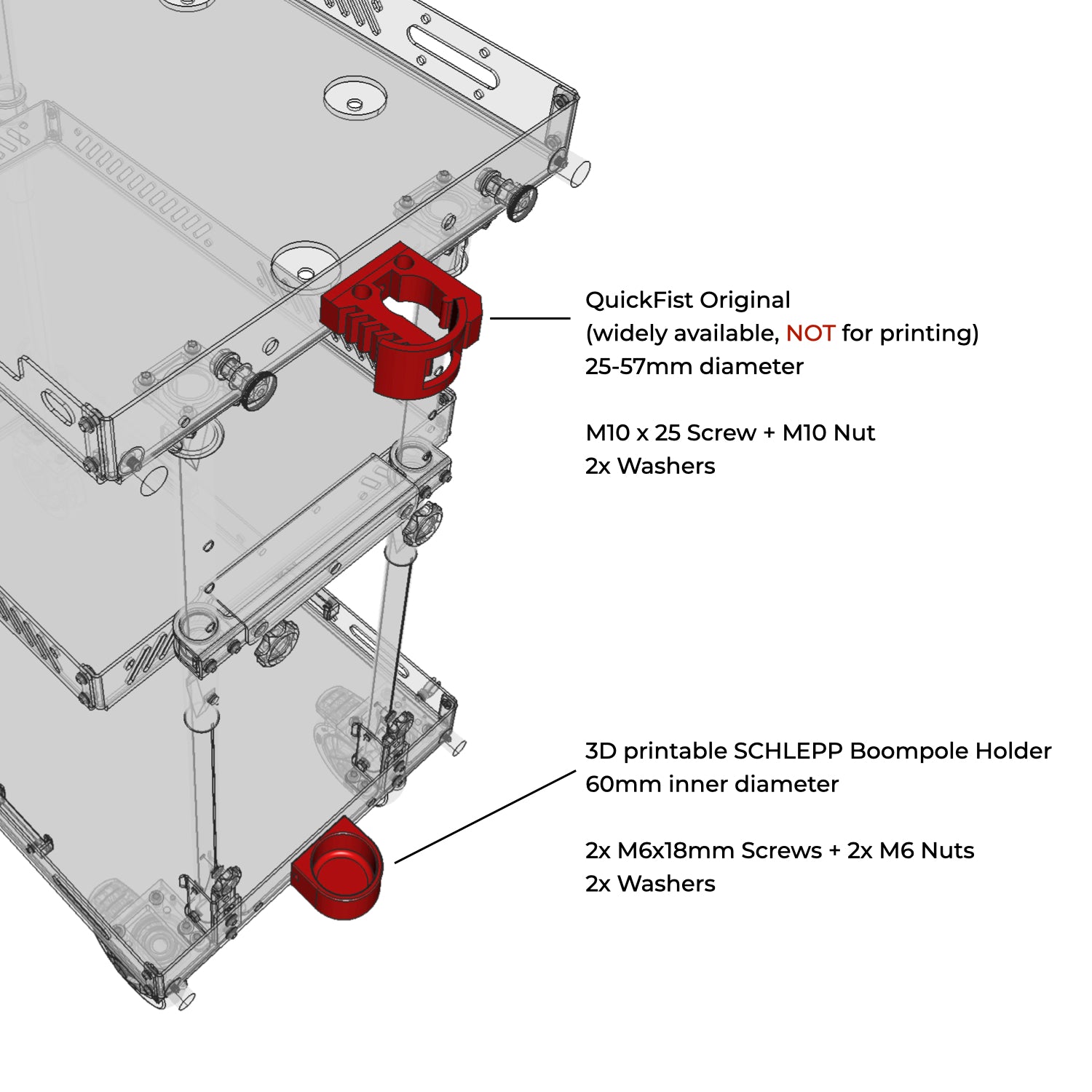

3. Required Parts:

• QuickFist Original Clamp (widely available), 25-57mm diameter, ca. 20-25 €, Set of 2

• Electric Drill, 10mm drill bit

• 1x M10 x 25 Screw + M10 Nut or Wing Nut

• 2x Nylon Washers (for M10 screws)

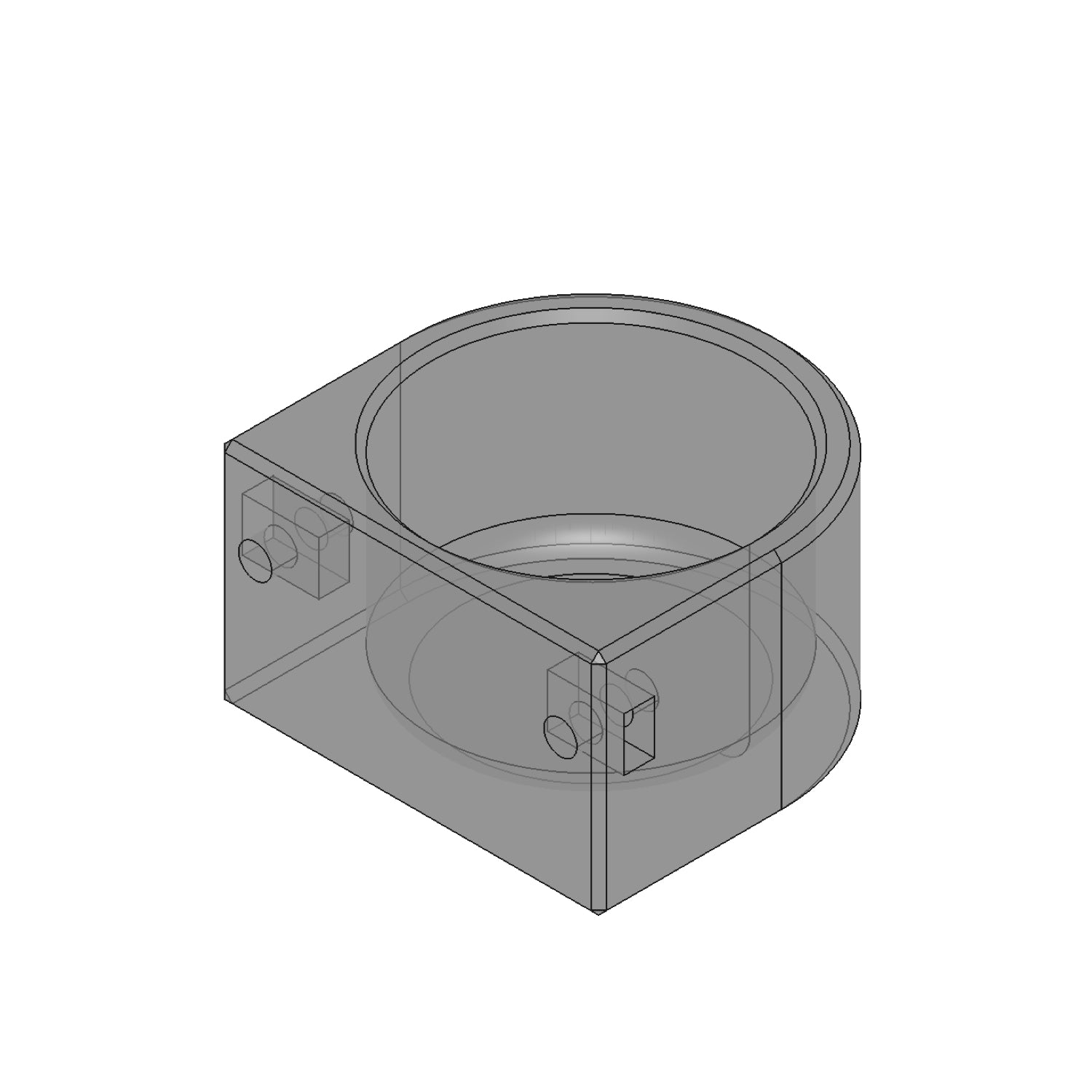

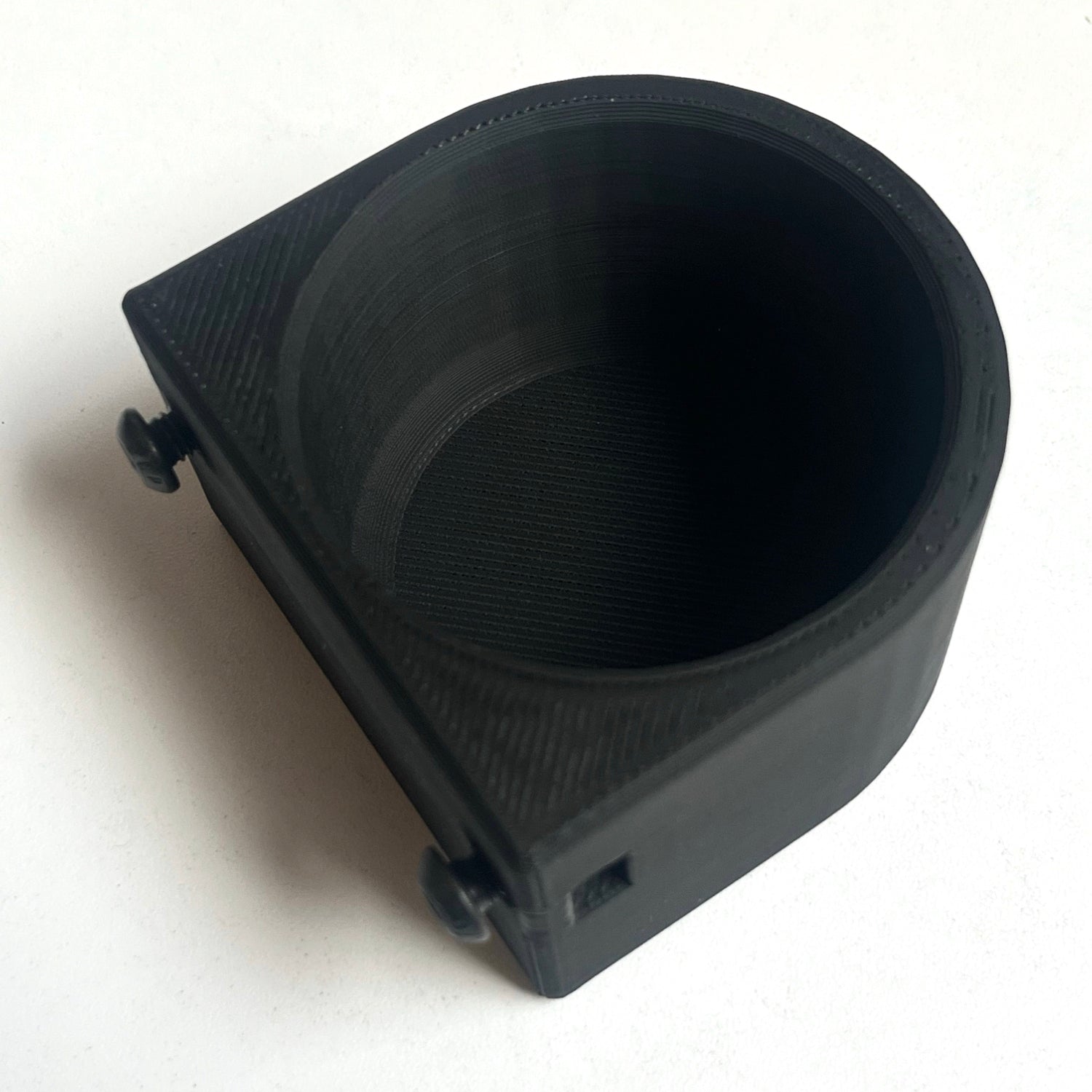

• 3D printable SCHLEPP Boompole Holder, 60mm inner diameter

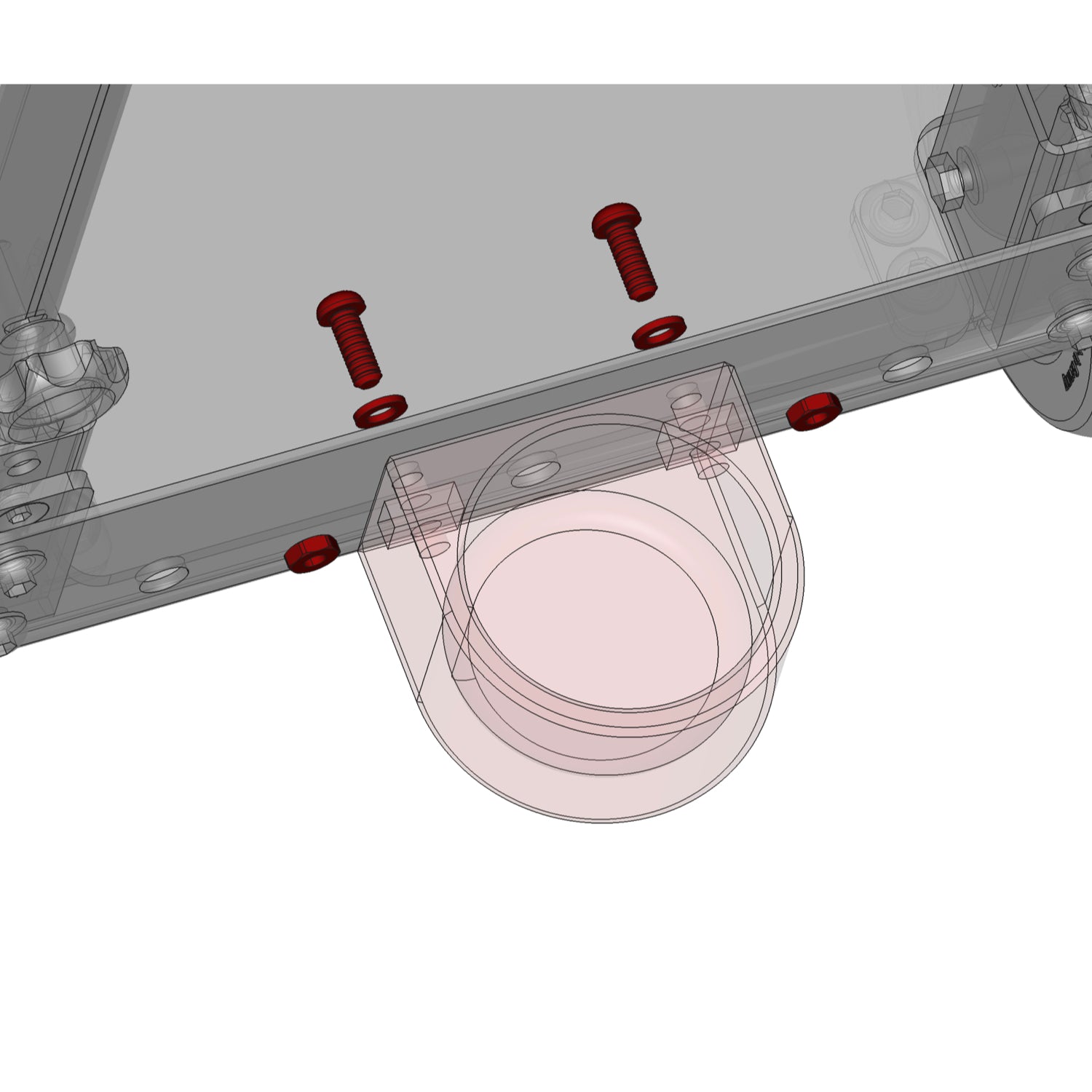

• 2x M6x18mm Screws + 2x M6 (Square) Nuts - regular nuts are fine, too

• 2x Nylon Washers (for M6 screws)

Orientation: Print flat.

We assume no liability for the stability and functionality, as the stability of the part is highly dependent on your print quality and how it is used.
